PX1 - Ventilation and Pump Control Systems

Main (239) 561-1561 Toll Free (866) 878-4279

RELEASED: 20 May 2019

Saminco to discontinue production of the JS400 Drive (A800715) and associated components
by December 31, 2019
Due to component availability, Saminco must discontinue the line of JS400’s systems from further production effective December 31st, 2019. We will provide repair and exchange service until the end of 2020 depending on parts availability. Please click here to read the full letter to customers.

Authorized Saminco Repair Representatives
This is to serve as a notice to all of our customers of authorized Saminco representatives for
Saminco products. READ MORE

Saminco Florida headquarters and manufacturing facility is now an ISO 9001:2015 Certified Company.
PRI Registrar recognizes Saminco International for its commitment to continual improvement in their management system. Saminco has received accreditation for demonstrating their ongoing commitment to quality by satisfying customer requirements and industry specifications. They join an elite number of organizations worldwide who have achieved certification to this globally recognized ISO 9001:2015. Read the press release here.

Research and Development - Design Capabilities

Analog or microprocessor based systems
Hardware and software development
Solid modeling of mechanical systems

Convection or water cooled systems
Rapid prototyping capabilities

Saminco Testing Battery/AC VFD System for Battery Haulers
Testing will be complete soon on the new Battery/AC Variable Frequency Drive system for Battery Haulers. Available at 128V or 240V, this system is a retrofit installation sized for existing xp boxes with dual voltage motors (128V or 240V) which will mount within existing framework, using existing gear reducers and planetary wheels. More information
Watch Our Video

Our Custom Engineered products are critical to Research and Development programs for University, Corporate and Military Programs. Saminco Motor Controllers are used as the basis for Hydrogen Fuel Cell, Hybrid and Battery powered vehicle research programs world wide. More Information

VFD Pump Controls Systems Brochure

VFD Ventilation Control Systems Brochure

VFD Pump and Ventilation Control Systems

230 to 600VAC - Up to 500HP

Standard Operational Specifications

NEMA 1, NEMA 12 and NEMA 3R Enclosures Standard
3 Contactor By-Pass Design to Enclosure Continuous Operation
Power Loss Ride-Thru Capability
Auto Restart on Fault
Automatic Switch to By-Pass on Fault
C/B with Thru Door Pad Lockable Mechanism
120VAC Power Supply for Customer Use
Fault Contact Outputs
Run Contact Outputs
Customer Safety Interlock Input

Benefits

Average Payback Period of Less than 1 Year due to Energy Savings
System Control Based on Flow or Pressure
Elimination of Water Hammer Reducing Stress on Pump, Pipes and Valve Seals
Reduced Demand on Power Center/Generator
Built in Motor O/L
Input/Output Phase Loss Protection
Ground Fault Detection
Full 1 Year Warranty, Parts and Labor

FL.GA800.01 brochure

GA800

Variable AC Drive for Industrial Applications

Power Range:
- Up to 150HP at 240V
- Up to 600HP at 480V
Motors: induction, permanent magnet, reluctance
Open and closed loop vector
Fast acting control for tripless operation
Integrated brake transistor up to 125 HP
Control it on your network: Ethernet I/P, ProfiNet, Modbus TCP/IP, and more
High resolution display
Easy setup and use
Connect to your favorite mobile device

iQpump brochure

iQpump Drive Products

240V - 600V, 3 phase, up to 250HP

NEMA 1, NEMA 12 and NEMA 3R Enclosures Standard
Standard communications with RS-485/422
Pre-programmed application macros
Converts single-phase pump motor applications to three phase for better starting torque, improved motor protection and efficiency
UL tested and approved for use on single-phase power
Drive to drive multiplexing for up to 8 pumps

P1000 brochure

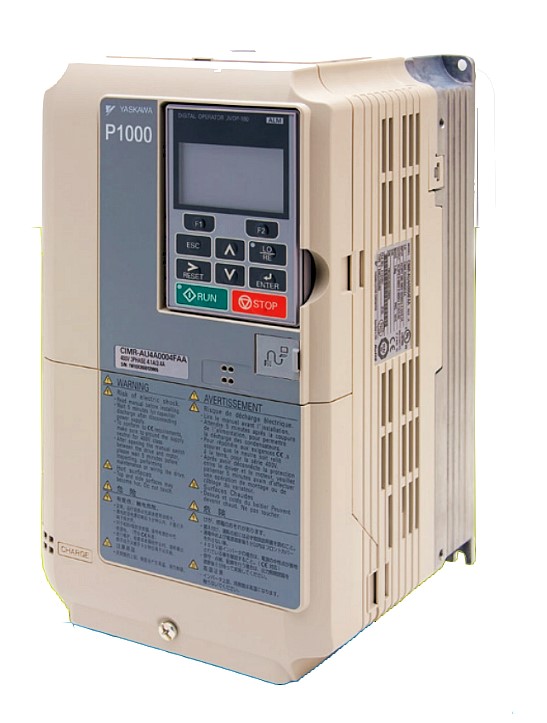

P1000 Industrial Fan and Pump Drive

240V - 600V, up to 1000HP

NEMA 1 enclosures standard and more
Real time clock
Fan and pump application presets
Customizable display for engineering units
Underload detection
Parameter storage and removable terminal board
PI process control
Power quality friendly
Dynamic noise control
Multiple networking options available

Keywords: VFD Pump, Ventilation Control Systems, Yaskawa, GA800, Variable speed drive, AC drive, iQpump Drive, P1000 Industrial Fan and Pump Drive
